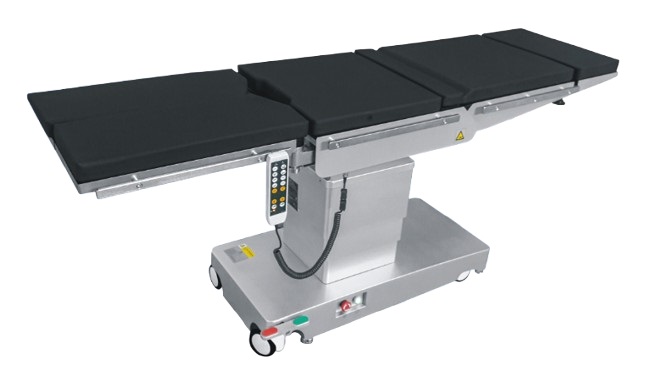

Hotbo RT-M300A Electric Universal Imaging Operating Table

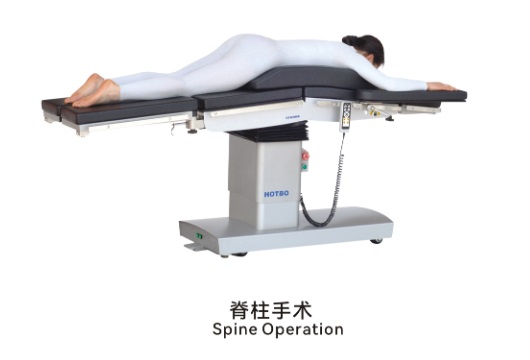

Hotbo RT-M300A Electric Universal Imaging Operating Table adopts the advanced electric-mechanic transmission system. Meets the requirement for observe and diagnose of imaging during operation. For general surgery, orthopaedic, spine and others.
Hotborn Medical Equipment company is a high-tech professional manufacturer of universal operating table, orthopedic operating table, spine surgery operating table and other various OT tables.

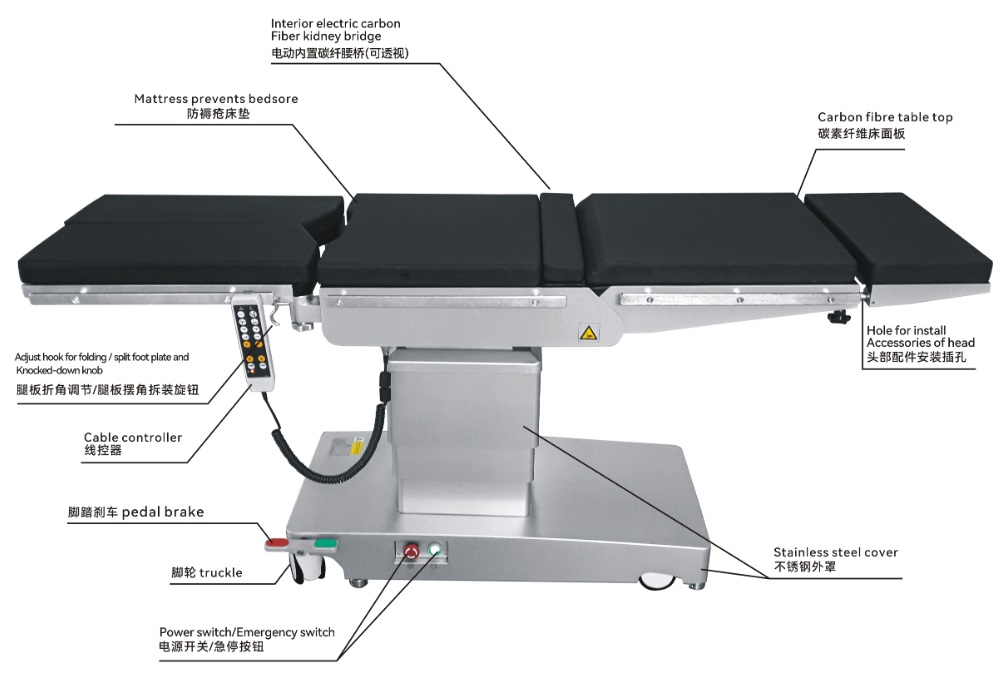

Hotbo RT-M300A Electric Universal Imaging Operating Table Details
Features
The operating table adopts the micro-motor with electric gear mesh mechanism structure insted of the traditional hydraulic transmission. No need to change oil termly and worry about the problem of leak oil.
Product with fine steel can move equally and smoothly in any directions. Provides accurate positioning and durable lifetime.

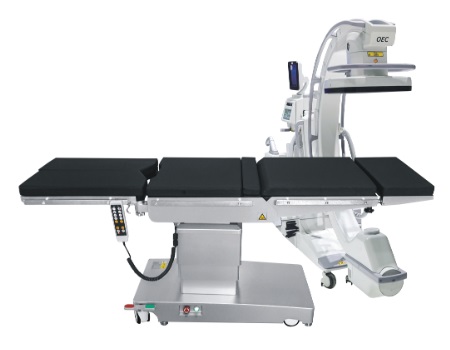

Horizontal movement (350mm) of the table top provides accurate space for C-arm. Can get x-ray imaging of full body without moving the patient. Table top adopts carbon fibre material with low x-ray absorption.
Verical/horizontal movement, head/foot, left/right tilt of table top and adjustable back plate were controlled by different seperate motors.
High precision beeline navigation rail ensure smooth and balance movement of operating table. 304 stainless steel for the cover base for easy clear up and listerize.
Hotbo RT-M300A Specifications
Table top: 2015x510mm
Back plate: 558x510mm
Sit plate: 542x510mm
Leg plate: 600x245mm
Height of table top: 650~1010mm
Up-down travel: 360mm (electric)
Horizontal travel: 350mm (electric)

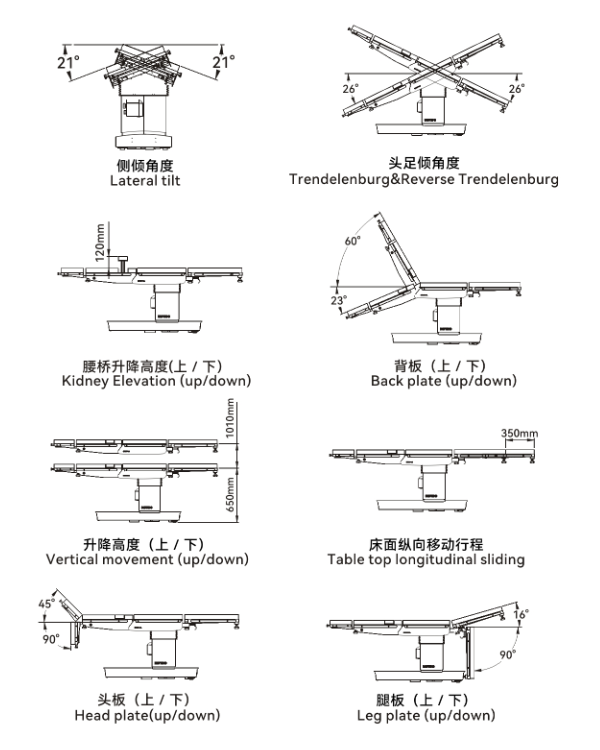

Trendelenburg: -26~26degree (electric)
Lateral tilt: -21~21degree (electric)
Back plate fold -23~60degree (electric)
Seperate leg plate fold: -90~16degree
Seperate leg plate detach: 0~90degree
Head plate fold: -90~45degree
Interior kidney bridge: 0-120mm
Power: 220V 50Hz 350VA
Load: 250kg
